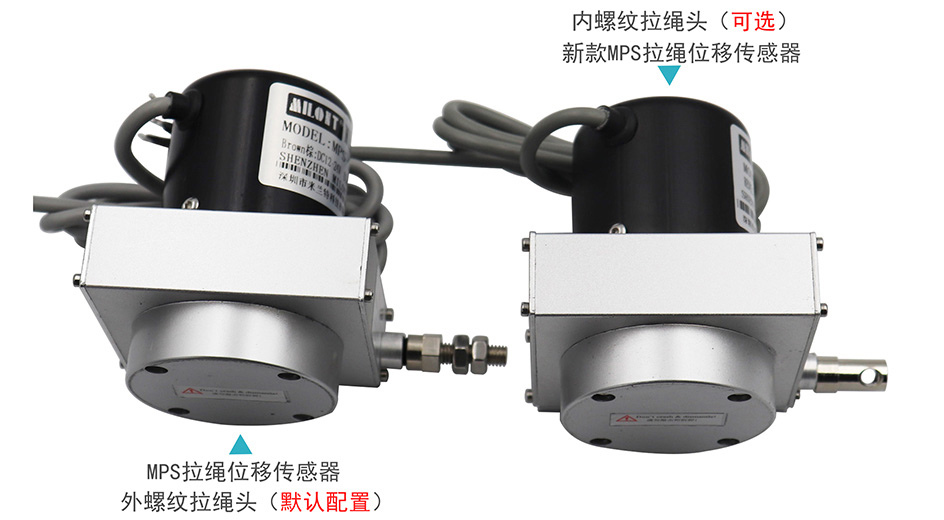

Product Introduction:
The range of MPS draw-wire displacement sensor is 100-50000 mm, including S-type (small, 100-2500 mm), M-type (medium, 500-7500 mm), L-type (large, 7000-15000 mm), XXS type (micro, 100-600 mm), XS type (micro, 100-1000 mm), XL type (super large, 15000-30000 mm). The output signals of the sensor are as follows: Resistance output (5K or 10K), voltage output (0-5V, 0-10V, three wire system or four wire system), current output (4-20mA, two wire system, three wire system or four wire system); 0-20mA, two-wire system, three wire system or four wire system), pulse output (AB phase or ABZ phase pulse square wave, differential signal output), RS485 digital signal output or absolute value coding output. The sensor has the advantages of small size, good stability, easy installation and use, and is widely used in the automation industry.
Characteristic: Long service life, up to 5 million times of operation;
High precision, linear precision ± 15%, repeatability accuracy ± 02%, and the maximum pulse output resolution is 0. 018 mm;
Various models, a variety of signal output options, convenient for system acquisition or long-distance transmission;
High protection grade, can be specially customized waterproof type, can be used in the open air.
Explain: ?Shell?????? ??Anodized aluminum
Assembly: ????Withholding type fixed bracket, part of the model screws fixed
Measurement components: ?????potentiometer, encoder
The accessories package (2 fixing brackets and 4 fixing screws) is included in the delivery
Performance parameter:
Machine base Model |
Range |
Output signal |
Linear accuracy |
Repeatability accuracy |
Resolution |
draw-wire diameter |
Maximum work speed |
IP level |
Service temperature |
service life |
S |
100 - 2500mm |
Resistance output |
± 0.15% |
± 0.02% |
infinite uninterrupted analysis |
0.8mm |
1m/s |
IP65 (waterproof type IP67) . |
-40 ℃ to +80 ℃ |
5 million times |
0-5V | ||||||||||
0- 10 V | ||||||||||
4 - 20mA | ||||||||||
RS485 digital signal |
± 0.1% |
± 0.01% |
32b it |
|||||||
Incremental pulse output |
± 0.05% |
See attached table |
||||||||
M |
500 - 7500mm |
Resistance output |
± 0.15% |
± 0.02% |
infinite uninterrupted analysis |
|||||
0-5V | ||||||||||
0- 10 V | ||||||||||
4 - 20mA | ||||||||||
RS485 digital signal |
± 0.1% |
± 0.01% |
32b it |
|||||||
Incremental pulse output |
± 0.05% |
See attached table |
||||||||
L |
7000-12000mm |
Resistance output |
± 0.15% |
± 0.02% |
infinite uninterrupted analysis |
0.5m/ s |
||||
0-5V | ||||||||||
0- 10 V | ||||||||||
4 - 20mA | ||||||||||
RS485 digital signal |
± 0.1% |
± 0.01% |
32b it |
|||||||
Incremental pulse output |
± 0.05% |
See attached table |
||||||||
XL |
Resistance output |
± 0.15% |
± 0.02% |
infinite uninterrupted analysis |
||||||
0-5V | ||||||||||
0- 10 V | ||||||||||
12000-30000mm |
4 - 20mA |
|||||||||
RS485 digital signal |
± 0.1% |
± 0.01% |
32b it |
|||||||
Incremental pulse output |
± 0.05% |
See attached table |
||||||||
XS |
100-1000mm |
Resistance output |
± 0.15% |
± 0.02% |
infinite uninterrupted analysis |
1m/s |
IP67 |
|||
0-5V (external module) | ||||||||||
0-10V (external module) | ||||||||||
4-20mA (external module) | ||||||||||
RS485 (external module) |
± 0.1% |
± 0.01% |
32b it |
|||||||
XXS |
100-600mm |
Resistance output |
± 0.15% |
± 0.02% |
infinite uninterrupted analysis |
|||||
0-5V | ||||||||||
0- 10 V | ||||||||||
4 - 20mA | ||||||||||
RS485 (external module) |
± 0.1% |
± 0.01% |
32b it |
Attached table:
Sensor range |
Resolution |
0-700mm |
0.018mm (65 line wheel) |
0-1000mm |
0.028mm (100 line wheel) |
1000-1200mm |
0.033mm |
1200-1500min |
0.042mm |
1500-2500mm (S type) |
0.044mm |
2000-7000mm (M type) |
0.055mm |
Explain: The above table shows the parameters of 3600 pulse draw-wire displacement sensor. Other commonly used encoders are: 500 pulse, 1000 pulse, 2000 pulse, 2500 pulse. Please contact us for specific parameters.
Application area:
It is mainly applicable to: Storage location positioning, reservoir dam protection, gate opening control, pressure machinery, paper machinery, textile machinery, sheet metal machinery, packaging machinery, printing machinery, level controller, construction machinery, industrial robot, ejector, woodworking machinery, elevator, air compressor, hydraulic press, height machine, X-Y axis and other length displacement Liquid level measurement and other automatic measurement occasions.
