Product Introduction

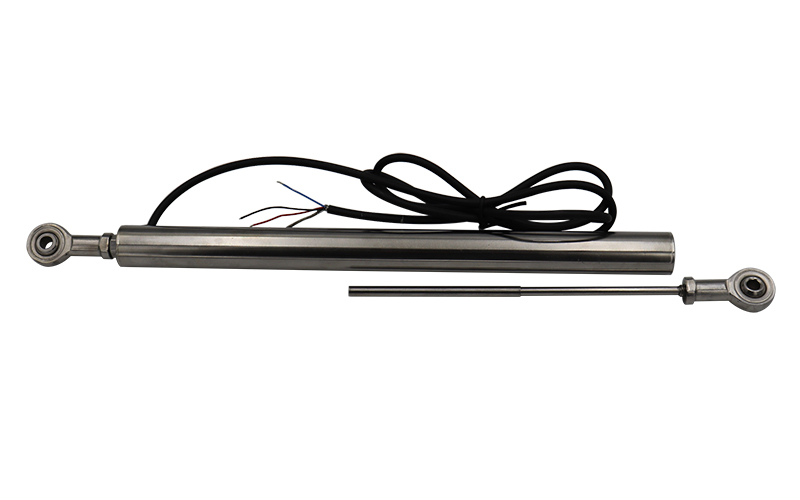

GF series split LVDT displacement sensor (crack gauge), dedicated to online monitoring of crack depth, width,?
opening and closing degree of civil engineering projects such as bridges, tunnels, buildings, concrete pavements, etc.
The sensor is powered by 12-24VDC, fish-eye heads at both ends, and the electronic circuit is sealed?in a 304 stainless?
steel metal tube. It can be used in the open air or in a humid environment for a long time and work stably.?
The output signal is a standard 0-5V or 4-20MA that can be used by a computer or PLC. Output, or RS485 digital signal
Power supply: 12-24V
Working current: voltage output type supply current: ≤12MA
?????????? ? ? ? ? ? ? ? ? ?Two-wire current output type, power supply current 4-20MA
Displacement range: GF25: 0-5mm; GF50: 0-10mm; GF125: 0-25mm;
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? GF250: 0-50mm; GF500: 0-100mm; GF1250: 0-250mm;?
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? GF2500: 0-500mm;
?Output signal: 0-5V, 0-10V, 40-20Ma, RS485 digital signal
Linearity error: analog signal output ±0.25%FS, ±0.5%FS, etc. optional
Digital signal output:±0.1%FS, ±0.25%FS, etc. optional
Weight error≤5um
Resolution ≤0.1um
Dynamic characteristics: 200HZ
Measuring force: 80g
Working temperature:-25 ℃ to + 85 ℃
Impact resistance: 250g/11ms
Vibration allowed: 10g/2KHZ
Temperature coefficient: zero point≤0.01%/ ℃
Sensitivity ≤0.025%/ ℃
Application:
Monitoring of cracks in civil engineering projects such as bridges, tunnels, buildings,?
concrete pavements, and geological disasters such as landslides?
Mechanical equipment displacement measurement and position positioning
