Characteristic:
? ? ? Principle of potentiometer, absolute position measurement
? ? ? Conventional output voltage signal, current signal output and RS485 signal output can be customized
? ? ? High precision, good stability, dust and wear resistance
? ? ? The structure is simple and easy to install and use

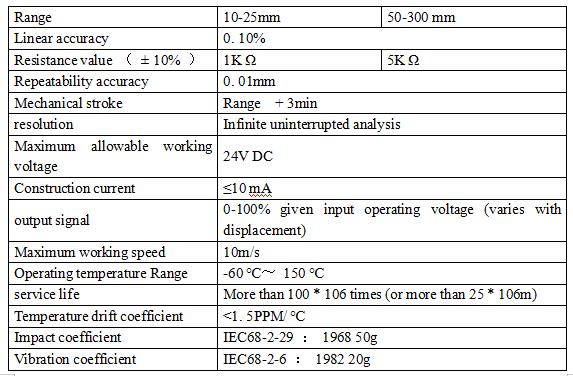

Performance parameters of displacement sensor
? ? ?Model: KTR 2
? ? ?Range: 10-300mm
? ? ?Resistance: 5K (or 1K)
? ? ?Linear accuracy: ± 0.1%
? ? ?Repeatability accuracy: 0.01mm
? ? ?Resolution: infinite analysis
? ? ?Maximum allowable working voltage: 24V
? ? ?Recommended current: ≤ 10mA
? ? ?Output signal: voltage signal
? ? ?Maximum working speed: 10M / S
? ? ?Service temperature: - 60 ℃ to + 150 ℃
? ? ?Service life: > 100 million times
? ? ?Temperature drift coefficient: < 1.5ppm / ℃
? ? ?Impact coefficient: iec68-2-29: 1968 50g
? ? ?Vibration coefficient: iec68-2-6:1982 20g
Application area:
? ? ?Hollow bottle blowing machine
? ? ?It equipment
? ? ?Tension adjustment
? ? ?High speed automatic feeder
? ? ?Speed regulation
? ? ?Printing machinery
? ? ?Paper packaging machinery
