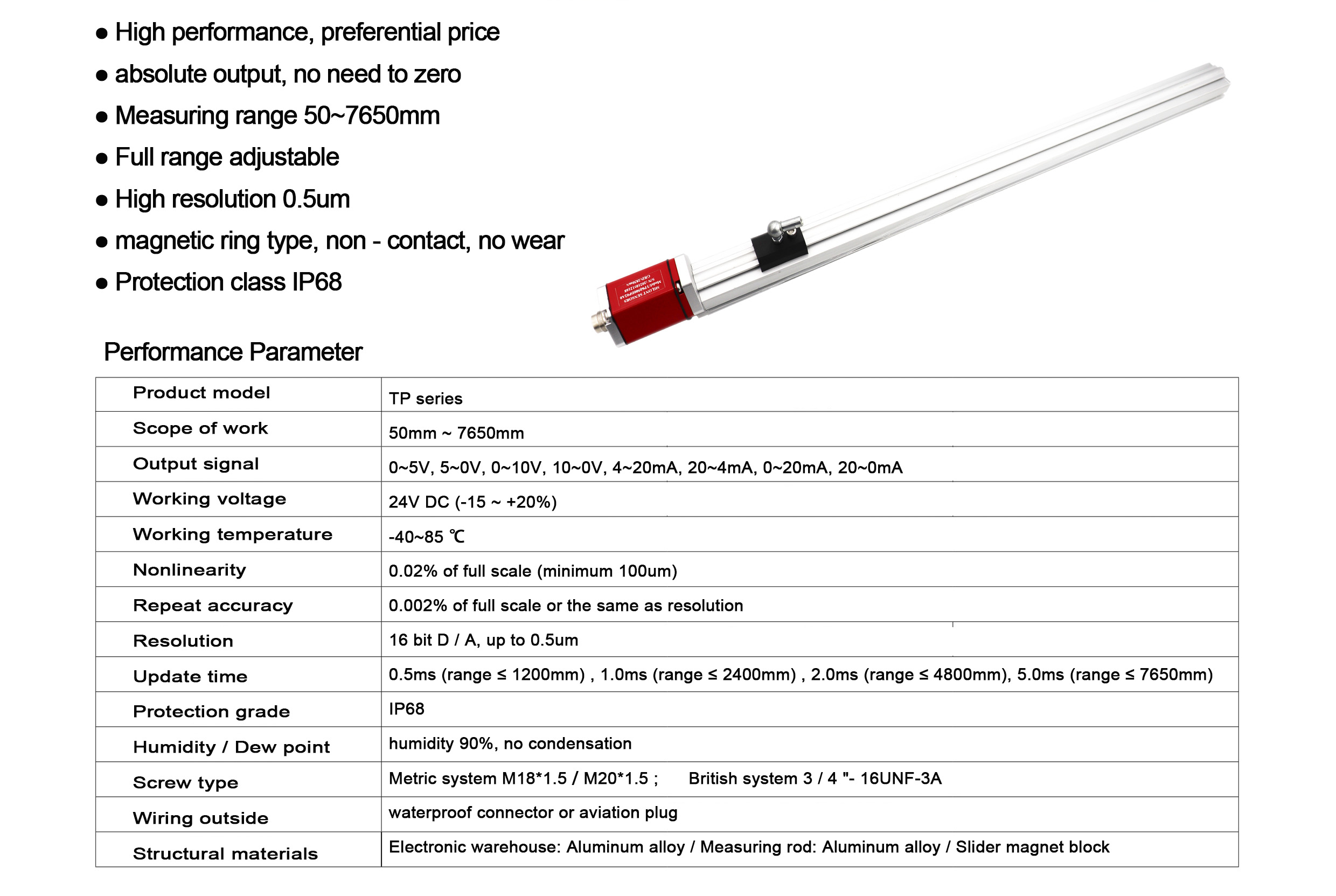

◆ Strong and durable: Fully enclosed design, the highest IP68 protection level
◆ Straight line measurement Absolute output, no need to return to zero
◆ Easy to use: Standard signal output, maintenance free
◆Never wear: Continuous non-contact measurement
◆ Full range adjustable: 100% adjustable zero and full range
◆ High resolution: The highest resolution is 0.5um
Input
Measurement data location
Measurement range: 50mm-7650mm
?
Output
Voltage:0~10Vdc,10~0Vdc,0~5Vdc,5~0Vdc
(controller minimum load: >5k Ohms)
Electric current: 4~20mA,20~4mA,0~20mA,20~0mA
(minimum / heavy load 0 / 500 Ohms)
?
Accuracy
Resolution 16 bit D / A, up to 0.5um??????
Nonlinearity < 0.02% of full scale (minimum 100um)
Repeatability < 0.002% of full scale or the same as resolution
Update time 0.5ms (range ≤ 1200mm)
1.0ms (range ≤ 2400mm)
2.0ms (range ≤ 4800mm)
5.0ms (range ≤ 7650mm)
?
Working conditions
Magnetic ring speed: arbitrary
Working temperature :- 40 ~ 85 ℃
Humidity / dew point humidity :90%, no condensation
Temperature coefficient<30ppm / ℃
Protection grade:IP65 RP aluminum forming outer pipe
IP67 RH pressure outer tube ??????
IP68 RH pressure resistant outer pipe (waterproof type)
?
?
?
Structure and materials
RP series; ?????Electronic warehouse: Aluminum alloy profiles ???????????????
Measuring rod: Aluminum alloy ????
Magnet: Slider magnet or floating magnet ?
RH series: ?????Electronic warehouse:Aluminium alloy profile ?????????????????
Measuring rod:stainless steel 304 or 316L??
Magnetic ring:Standard magnetic ring or open magnetic ring ??????
Outer pipe pressure40MPa (continuous)
60MPa (peak value)
?
Install
Installation direction:arbitrary direction
Thread form: metric m18 × 1.5 ,M20 × 1.5
British system 3 / 4 "- 16UNF-3A
?
Electrical connection
Outlet type: waterproof connector or aviation plug
Input voltage: 24 VDC (- 15 ~ + 20%)
polarity protection Maximum :- 30VDC
Overpressure protection: Maximum36VDC
Working current <70mA (varies with measuring range)
