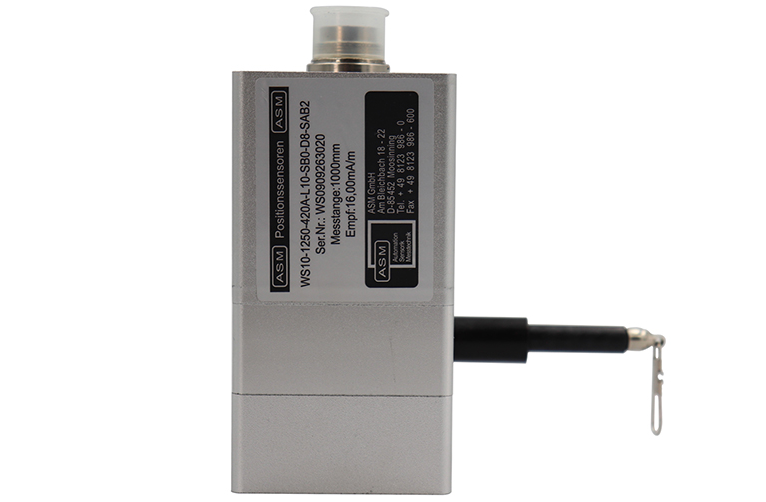

Product introduction:
Milont WS cable displacement sensor, range of 100mm~1250mm, sensor output signal: resistance output, voltage output (0-5V;0-10V), current transmission (4-20mA, two-wire system or three-wire system), the sensor size is small, high precision, easy to install and use, widely used in the automation industry.

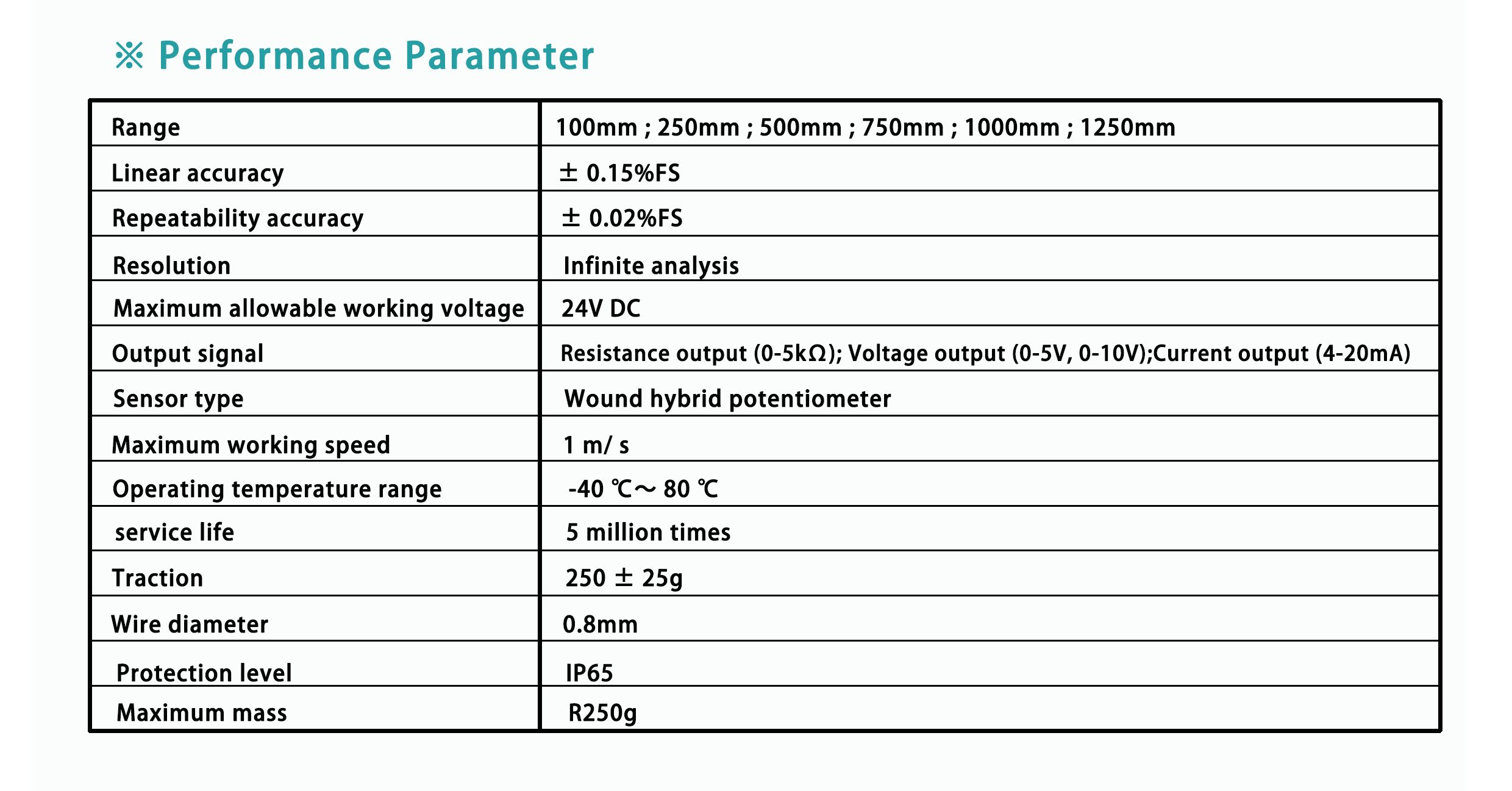

Performance parameter:
Range: 100-500mm
Linear accuracy: ±0.15%FS
Repeatability accuracy: ±0.02%FS
Resistance value(±10%):5KΩ,10KΩ
Resolution: infinite?no broken parsing,RS485
Maximum allowable working voltage: 24 V DC
Output signal: resistance output(0-5KΩ); Voltage signal (0-5V, 0-10V); Current signal (4-20mA)
Sensor type: wire wound hybrid potentiometer (encoder)
Maximum working speed: 1m / S
Temperature range: - 40 ℃ to + 80 ℃
Service life: 5 million times
Traction: 250±25g
Wire diameter: 0.8mm
Protection grade: IP65
Maximum mass: 250g
Wiring instructions:
Sensor type |
Wiring color |
Connection mode |
Sensor type |
Wiring color |
Connection mode |
Resistance output type (5K / 10K) |
Brown |
DC 5V/10V |
?current output type (two?wire system) |
Brown |
DC 15-24V |
Blue |
0V |
Black |
?output |
||
Black |
Output |
Shielding wire |
Ground |
||
Shielding wire |
Ground |
Voltage output type / current output type (four wire system) |
Red |
DC 15-24V |
|
Voltage output type / current output type (three?wire system) |
Brown |
DC 15-24V |
Green |
0V |
|
Blue |
0V |
Black |
Positive?output |
||
Black |
Output |
White |
Negative?output |
||
Shielding wire |
Ground |
Shielding wire |
Ground |
?
